Hyundai Veloster: Power Outside Mirror Switch. Schematic Diagrams - Power Door Mirrors - Body Electrical SystemHyundai Veloster: Power Outside Mirror Switch. Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Power Door Mirrors / Power Outside Mirror Switch. Schematic Diagrams

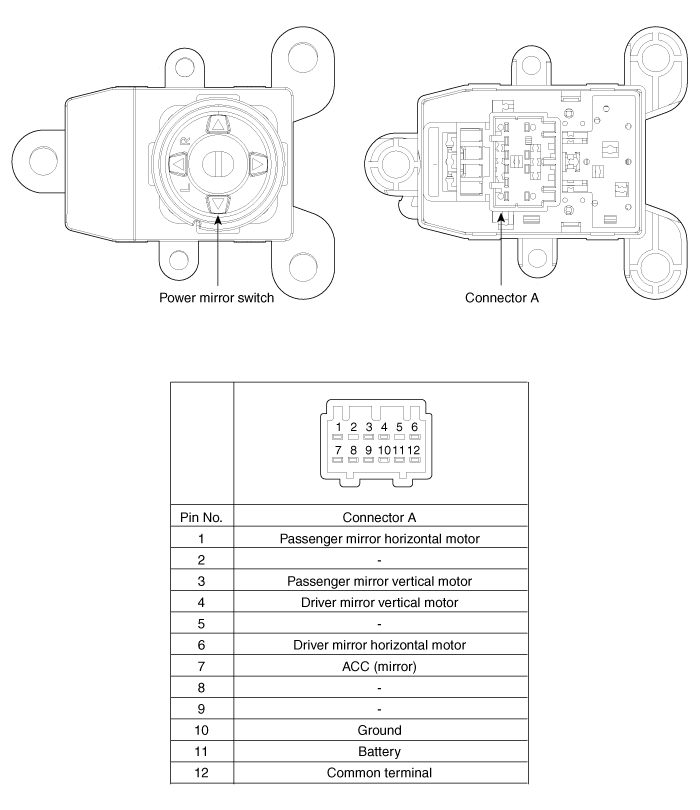

Circuit configuration


Components and Components Location
Components 1. Power door mirror 2. Power door mirror switch ...

Power Outside Mirror Switch. Repair procedures
Inspection 1. Disconnect the power door mirror switch module connector from front door trim panel. 2. Check for the continuity bet ...
