Hyundai Veloster: Intake Air Temperature Sensor (IATS). Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Intake Air Temperature Sensor (IATS). Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS). Schematic Diagrams

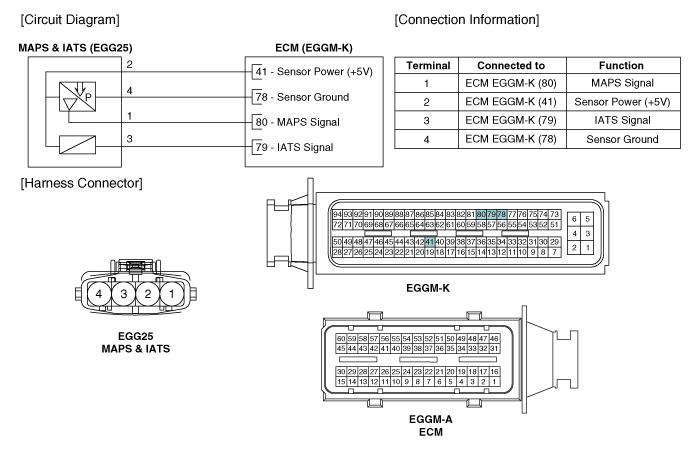

Circuit Diagram


Intake Air Temperature Sensor (IATS). Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 40.93 ~ 48.35 -20 ...

Intake Air Temperature Sensor (IATS). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between th ...
